Progressive die stamping is a crucial method in metal forming, significantly changing how industries produce complex components. This technique, integral to high-volume manufacturing, serves as a foundation for various sectors, guaranteeing precision and efficiency in every part produced.
In this blog post, we will explore the complexities of progressive die stamping, highlighting its importance and the numerous advantages it offers.
As we delve into the world of progressive die stamping, we will examine its processes, key benefits, and the industries it has notably influenced. Join us as we uncover the transformative impact of this innovative metal-forming technique.
What Is Progressive Die Stamping

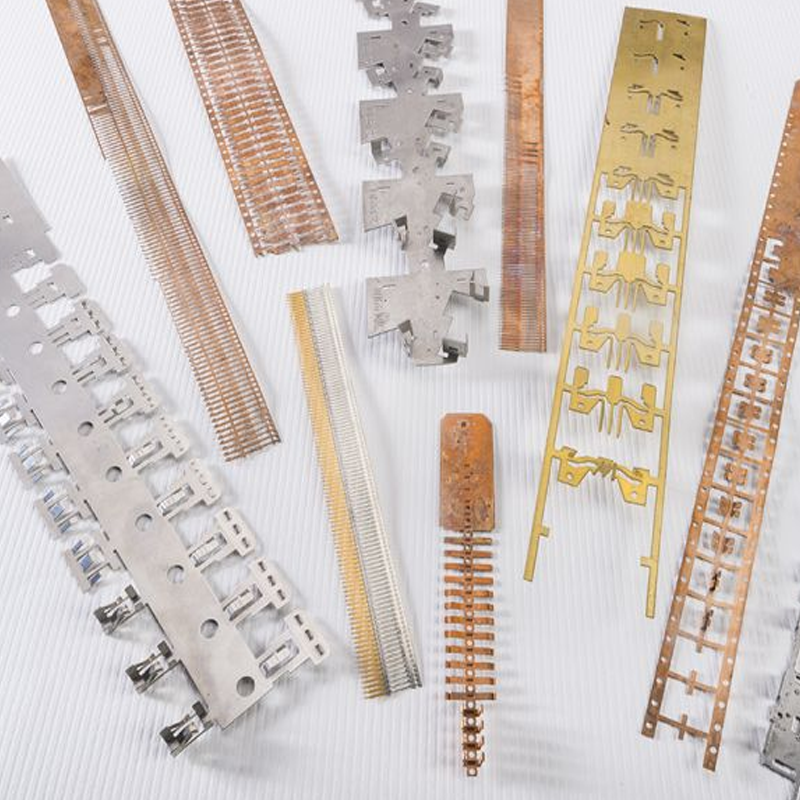

Progressive die stamping is a sophisticated technique in the metalworking industry, revolutionizing the production of complex components. This method utilizes a sequence of stations, each dedicated to a specific function, ensuring a seamless transition from a raw metal strip to a finely crafted part. Particularly advantageous for high-volume production, progressive die stamping excels in delivering precision and maintaining quality, accommodating a wide variety of metals such as brass, stainless steel, aluminum, and copper.
At Topmetalstamping, we leverage this adaptability and efficiency to meet the diverse needs of our clients across various industries.
The Progressive Die Stamping Process
Stock Strip Layout and Design:
The process begins with the careful design of the stock strip. Using advanced modeling techniques, our engineers at Topmetalstamping create the progressive stamping die, meticulously positioning every bend, punch, and hole for optimal results.
Tool Steel and Die Set Machining:
Next, our skilled craftsmen manufacture die blocks from high-quality tool steel, ensuring each block meets stringent specifications. This step is vital for achieving consistent part repeatability, with rigorous quality control measures in place before production begins.
Grinding and Heat Treating:
To bolster the durability of the components, we subject them to heat treatments that exceed the alloy’s critical transformation temperature. This is followed by precision grinding to refine parts that require high dimensional accuracy.
Wire EDM:
Using electrically charged brass wire, we shape die blocks through controlled sparking, enabling the creation of intricate angles and features, which adds depth to our designs.

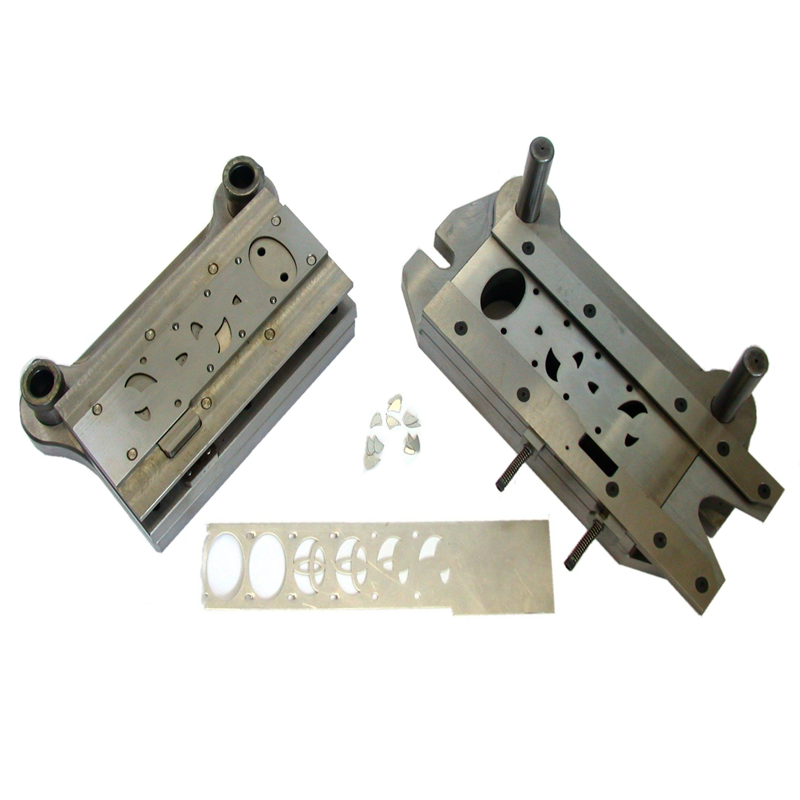

Die Assembly:
Once all preparatory processes are complete, our die makers meticulously assemble the die, ensuring it aligns with the original design specifications. This die is then installed in the stamping press, where it functions through a precise up-and-down movement.

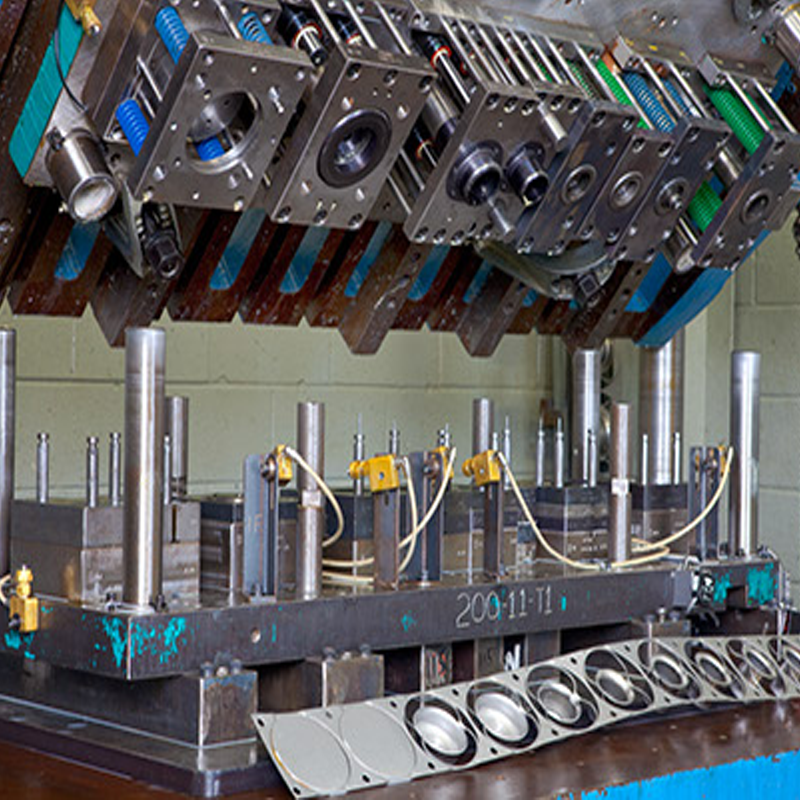

Stamping Parts:

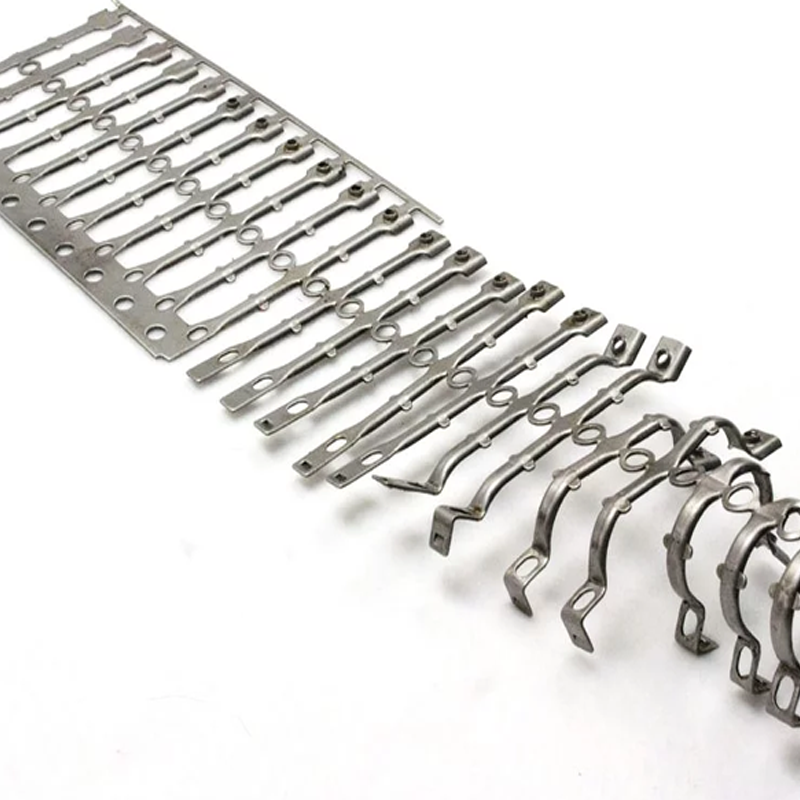

With the die in place, the stamping process commences. As the metal strip passes through the die, each station sequentially cuts, punches, and bends it, producing the desired component. Our dies can execute a range of operations, including embossing, coining, and cutting, ensuring versatility in production.
Packaging and Shipping:
Upon completion of production, parts are detached from the feed line. After rigorous quality checks, they are carefully packaged and dispatched to their intended destinations.
Benefits of Progressive Die Stamping
Increased Production Speed:
At Topmetalstamping, we utilize progressive die stamping to enhance production speeds significantly, thanks to its continuous feed mechanism, allowing for large quantities to be produced efficiently.
Faster Setup:
This technique dramatically reduces setup time compared to traditional methods, streamlining production processes and improving overall efficiency.
Reduction of Scrap Metal:
By employing precise techniques like coining and bending, we maximize material usage, minimizing waste and lowering scrap rates.
Increased Repeatability:
Our use of durable tooling ensures consistent quality across large production runs, providing uniformity in every part manufactured.
Versatile Geometries:
Progressive die stamping stands out for its ability to produce components with multiple geometries in a single cycle, showcasing its flexibility.
Lower Cost:
By optimizing material use, minimizing setup times, and enabling high-speed production, progressive die stamping significantly reduces per-part costs, delivering economic benefits to our clients.
Additional Advantages:
Beyond these key benefits, our methods allow for higher press tonnage rates, reduced material handling, and the maintenance of tight tolerances, enhancing the appeal of progressive die stamping in manufacturing.
Progressive Die Stamping vs. Compound Stamping
While both progressive and compound stamping play critical roles in metal forming, they serve different purposes. Progressive stamping executes a series of operations—such as bending and cutting—on a metal strip as it moves through various stations. This makes it ideal for high-volume production, ensuring continuous transformation of the metal.
In contrast, compound stamping performs multiple operations in a single stroke using a single, intricate die, making it suitable for simpler, larger parts that require precise specifications. The choice between the two methods depends on the complexity, volume, and precision demands of the final product.
Conclusion
Progressive die stamping represents a significant advancement in manufacturing, bridging the gap between intricate design requirements and high-quality production. Its vital role in today’s industrial landscape cannot be overstated, as it meets high-volume demands with unparalleled precision.
At Topmetalstamping, we are committed to harnessing the myriad benefits of progressive die stamping, from increased production speeds to cost efficiency. Whether serving the automotive sector or the electronics industry, our dedication to excellence positions us as a leader in this transformative process.
As we reflect on the impact of progressive die stamping, it becomes clear that this method not only reshapes metal but also sets new standards for manufacturing. In a rapidly evolving industrial environment, progressive die stamping at Topmetalstamping emerges as a beacon of innovation, driving progress and precision in all our endeavors.
