What Is Two-Shot Injection Molding
The conventional injection molding process is widely used to meet the diverse needs of various industries, producing parts with straightforward designs. However, some applications require a more sophisticated approach to achieve complex geometries, enhance material properties, or improve production efficiency. One such advancement is two-shot injection molding (often referred to as two-component molding, twin-shot molding, or overmolding), which allows for the manufacturing of multi-material or multi-colored parts in a single cycle. This process significantly reduces production time and costs, while also improving product quality. It is increasingly being utilized across a variety of industries to produce parts with intricate designs and superior functionality.
The Two-Shot Injection Molding Process
Two-shot injection molding is an advanced molding technique that builds upon the principles of conventional injection molding. Unlike traditional molding, which uses a single material injected into the mold cavity, two-shot molding involves two separate injections of different materials into the same mold, typically in two stages. This process is especially beneficial for creating complex parts that require multiple material properties, such as different textures, colors, or functional attributes.
While the process is similar to traditional injection molding in some ways, it also incorporates additional components and machinery to handle the dual material injection. The primary machinery involved in two-shot molding includes:

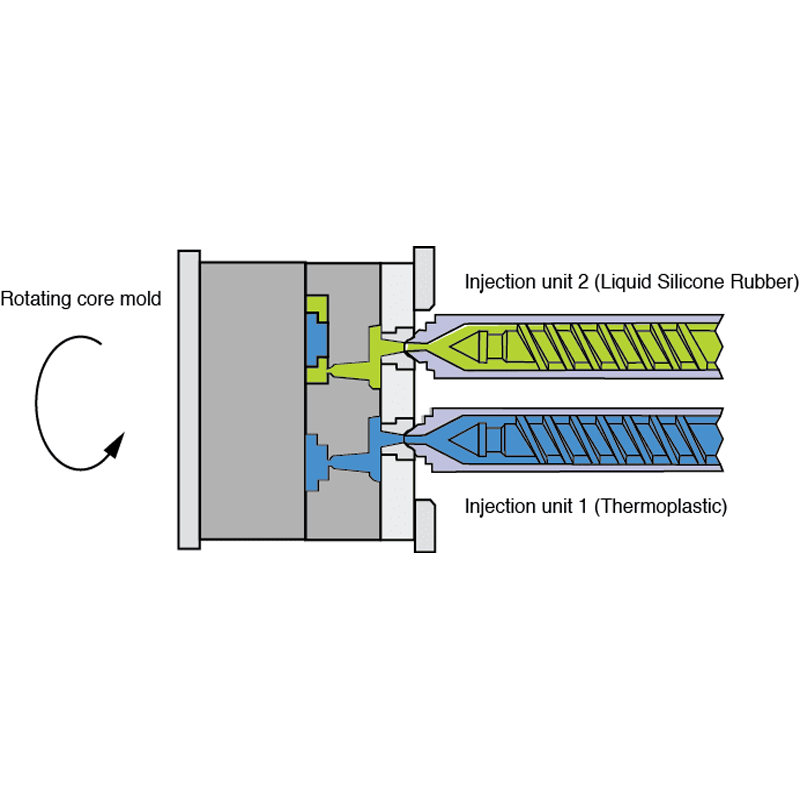

- Injection Units – Two separate injection units are used, each feeding a different material into the mold cavity. These injection units can be either horizontal, vertical, or a combination of both, depending on the product design and material requirements.
- Rotating Mold Mechanism – After the first shot, the mold rotates to allow the second material to be injected over the first material, which is already partially solidified. This rotation ensures that the first shot is in the correct position for the second shot to be added efficiently.
- Mold Design – The mold itself often utilizes a two-plate or rotary design, allowing it to open and rotate between shots. This design ensures that each shot can be injected into a separate cavity before the mold rotates to make way for the next injection.
Process Overview
The two-shot molding process typically begins in the same way as conventional injection molding, with the material being fed into the injection unit. For thermoplastics, this material is usually in pellet form, which is then heated and melted by a reciprocating screw. The melted material is injected into the mold cavity, filling it to the required shape and cooling to solidify.

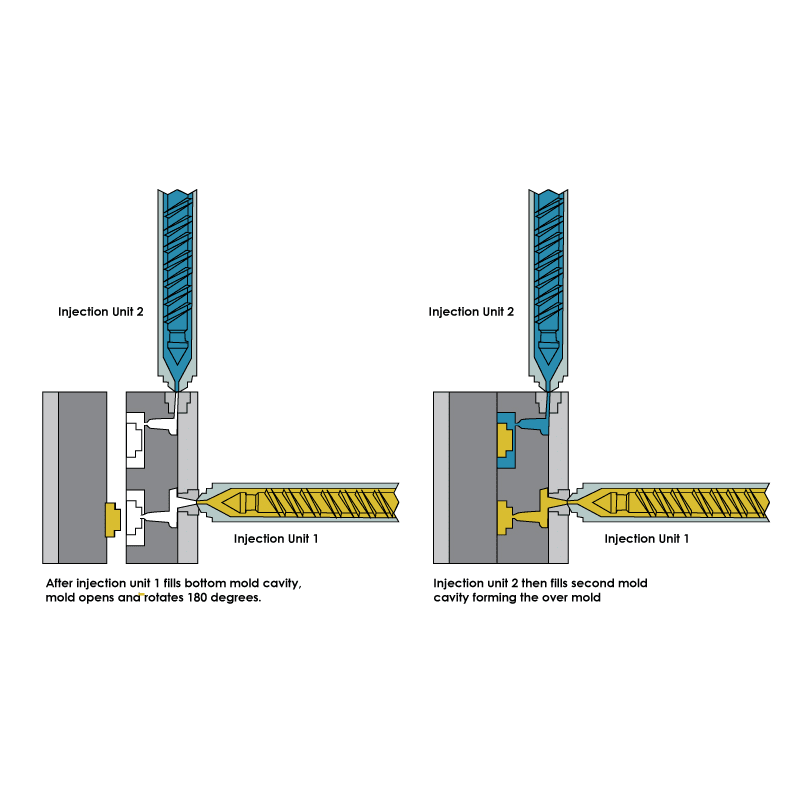

After the first shot, the mold rotates to allow the second shot to be injected. The second material is often different from the first and can range from another type of thermoplastic to elastomers, silicones, or rubber compounds. The second material typically forms an overmold on top of the first shot, providing additional functional properties such as flexibility, texture, or resistance to heat and chemicals.
One of the key aspects of two-shot injection molding is the timing and coordination between the two injection units and the mold rotation. The materials must be carefully chosen based on their thermal properties to ensure that the first shot does not soften or deform during the second injection phase. The timing of the rotation and injection cycles must be precisely controlled to prevent any unwanted mixing of the materials and to ensure proper bonding between the two layers.
Machinery and Equipment for Two-Shot Molding
The machinery used in two-shot injection molding is specifically designed to accommodate the dual injection process. Two injection units are mounted on the same machine, with each unit feeding a different material into the mold. These units may share some common systems, such as temperature control units or hydraulic systems, but each injection unit operates independently to handle different material types.
The mold rotation mechanism plays a crucial role in the process. After the first shot is injected, the mold rotates to position the cavity for the second shot. The mold must be precisely aligned to ensure a seamless transition between the first and second injections. The rotation mechanism typically uses a servo motor or hydraulic cylinder to ensure that the mold moves accurately and at the correct speed. Proper alignment is critical to avoid misalignment during injection and to prevent leaks or poor bonding between the two materials.
Advantages of Two-Shot Injection Molding
Two-shot injection molding offers numerous benefits over traditional injection molding processes, particularly when dealing with multi-material or multi-functional parts. Some of the key advantages include:
- Complex Design Capabilities – Two-shot injection molding allows for the production of more complex designs that would be difficult or impossible to achieve with a single injection. The ability to combine different materials with varying properties enables the creation of parts that offer enhanced aesthetics, improved functionality, and greater durability.
- Increased Production Efficiency – By combining two parts in a single cycle, two-shot injection molding reduces the need for additional processing steps such as assembly, welding, or adhesive bonding. This streamlines the manufacturing process, cutting down on labor costs and reducing the time required to produce each part.

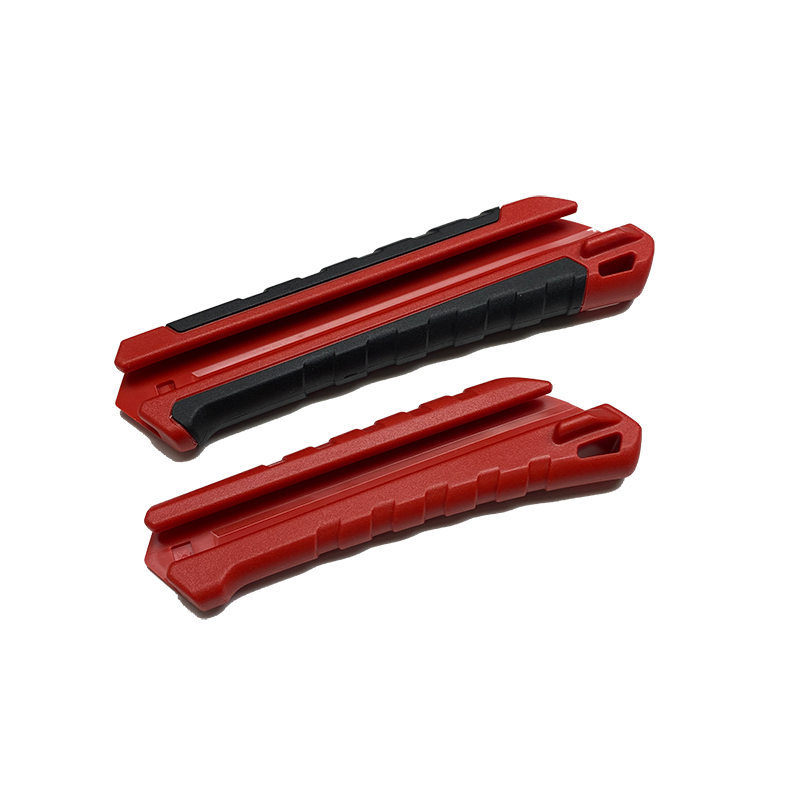

- Improved Product Aesthetics and Functionality – Two-shot molding allows for the creation of parts with seamless integration of materials, which can result in improved appearance and functionality. For example, combining a soft-touch material with a rigid plastic can provide a comfortable grip while maintaining structural integrity.
- Reduced Need for Assembly – Since two different materials are injected into the same mold, parts can be produced in one cycle without the need for secondary operations such as assembly or bonding. This not only saves time but also reduces the risk of defects or weak points at the joints.
- Enhanced Durability and Performance – Two-shot molding can produce parts with improved wear resistance, impact resistance, and other desirable properties. For example, it is commonly used to create rubber overmolds on plastic substrates to enhance the part’s flexibility and durability.
Applications of Two-Shot Injection Molding
Two-shot injection molding is used in a wide range of industries, including automotive, electronics, medical devices, consumer goods, and more. Some common applications include:
– Automotive Components – Parts such as handles, gaskets, and switches, where both rigidity and flexibility are required.
– Medical Devices – Products like syringes, drug delivery systems, and surgical instruments that require multiple materials for functionality and safety.
– Consumer Electronics – Keypads, buttons, and enclosures that require a combination of materials for aesthetics, comfort, and durability.

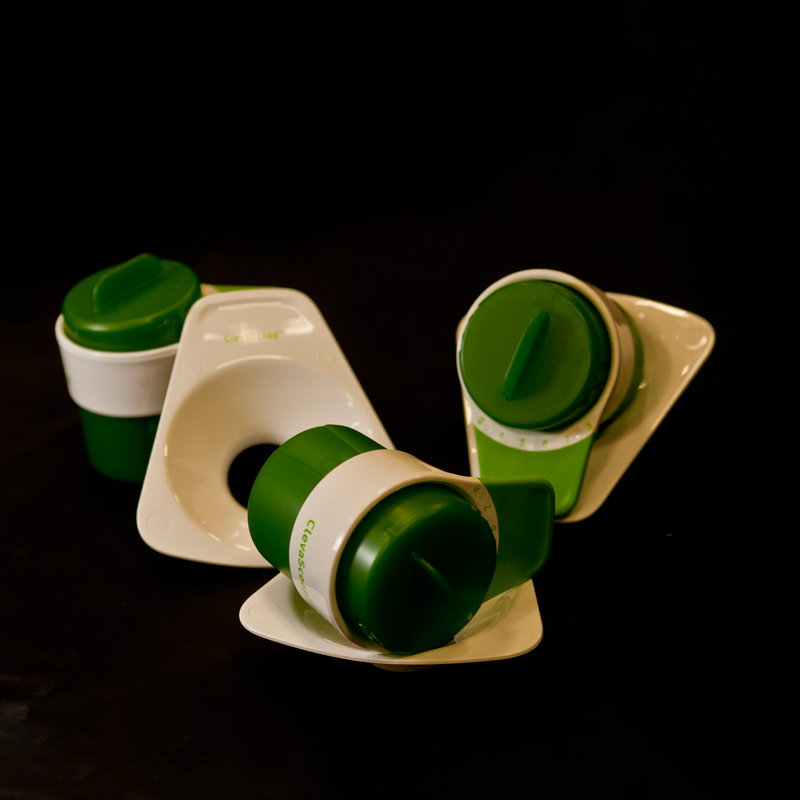

– Household Goods – Kitchenware, cleaning products, and other consumer items that benefit from the use of multiple materials for improved performance.
Conclusion
Two-shot injection molding is a powerful and versatile technique that offers significant advantages over traditional injection molding. By enabling the combination of different materials in a single cycle, it allows for more complex designs, improved functionality, and greater production efficiency. With its broad range of applications and potential for cost savings, two-shot molding is poised to become a standard method for manufacturing high-performance, multi-material parts across various industries. As this technology continues to evolve, we can expect even more innovative applications and enhancements to product design and manufacturing processes.
