When it comes to designing and manufacturing precision metal stamped components, the selection of finishing options is crucial. Engineers and project managers from the manufacturing team, their suppliers, and the metal stamping specialists must collaborate closely to determine the most suitable finishing methods for each component. Whether the objective is to prevent corrosion, enhance aesthetics, or smooth sharp edges, effective metal finishing is a vital step in the production process that should be factored in from the outset.
Common Finishing Options
Powder Coating and E-Coating
Finishing processes such as powder coating and e-coating are commonly employed to enhance the surface characteristics of metal parts. These coatings can serve multiple purposes, including providing aesthetic appeal and acting as a protective layer against corrosion.

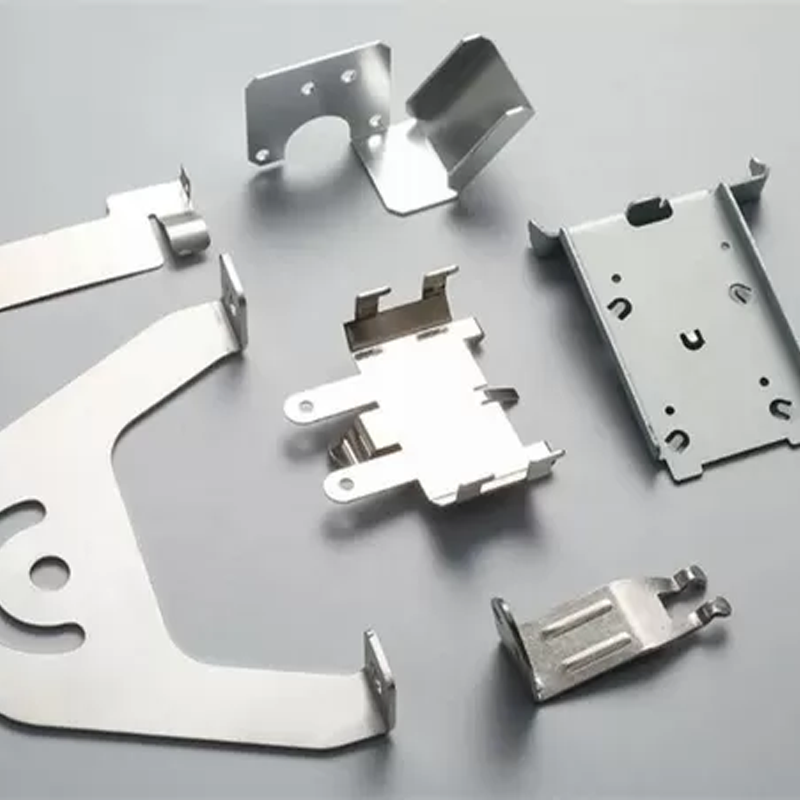

– Powder Coating: This method involves applying a dry powder that is then cured under heat to form a durable layer. It is widely appreciated for its variety of colors and finishes, making it a popular choice in industries such as automotive.

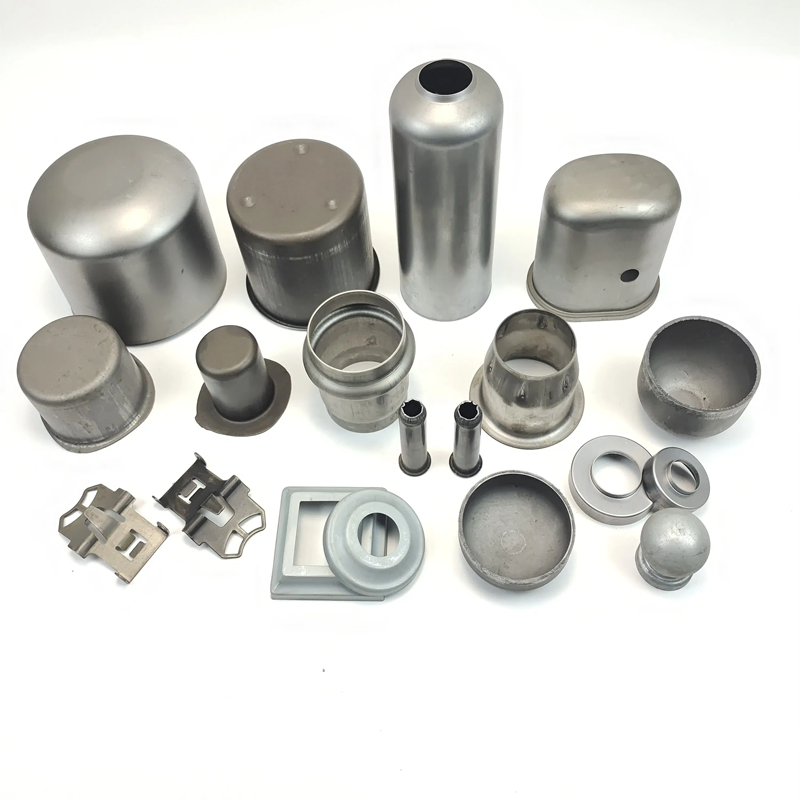

– E-Coating (Electrocoating): This technique involves dipping parts into a paint solution and applying an electric current to draw the coating onto the surface. Often utilized as a primer for corrosion protection, it provides a uniform layer that can enhance paint adhesion in subsequent finishing processes.
Benefits of Coating Techniques:
– Enhance corrosion resistance
– Improve visual appearance
– Serve as a primer for subsequent coatings
– Increase wear and chemical resistance
– Modify friction characteristics

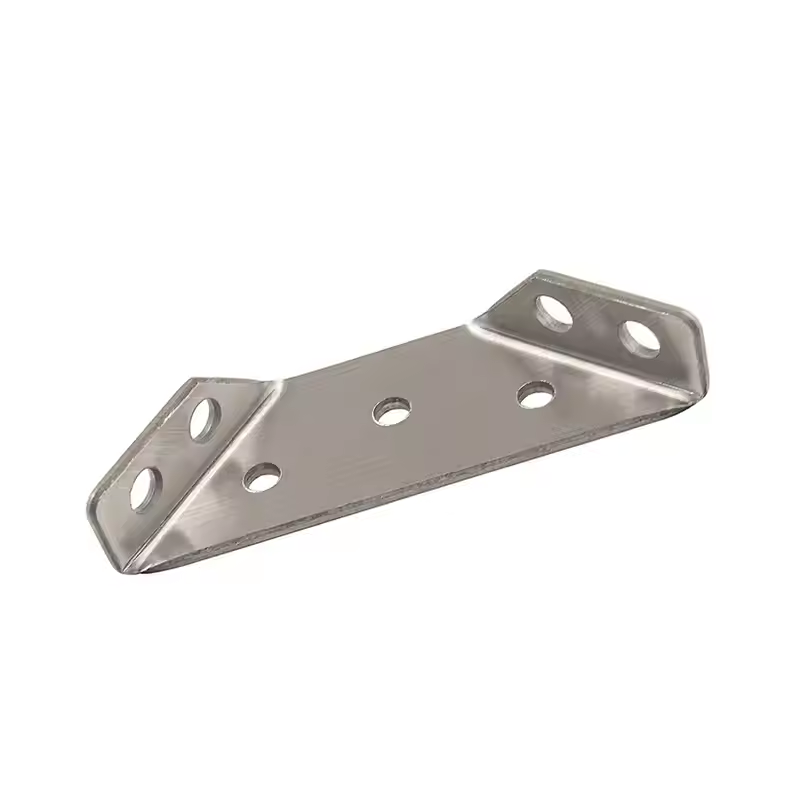

Plating
Metal plating is another essential finishing technique employed across various applications, from automotive components to small electronic parts. Plating serves to improve the appearance of a part while offering additional benefits such as corrosion inhibition and enhanced electrical conductivity.
Plating can be specified in various thicknesses and utilizes a range of materials, including precious metals like gold and silver, as well as non-precious options like zinc and copper. The cost of the chosen plating material significantly influences the overall cost of the component.
Types of Plating Processes:
– Pre-Plating: Involves plating the raw metal before stamping, often at a lower cost.
– Post-Plating: Applied after fabrication, ideal for parts exposed to harsh environments.
– Spot-Plating: Primarily used with precious metals for localized areas requiring plating.
Common Plating Techniques:
– Reel-to-reel plating
– Barrel plating
– Rack plating
– Zinc or zinc-nickel electroplating
– Aluminum chromating

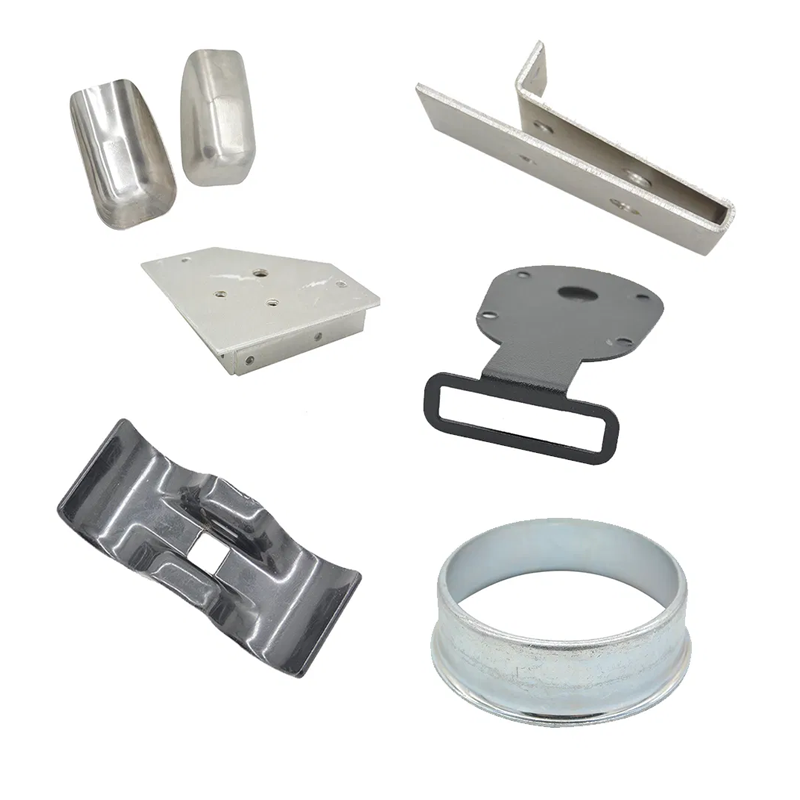

Electropolishing
Electropolishing is a method that enhances the surface finish of metal parts by removing the outer layer and any contaminants. This is achieved by immersing the components in a chemical electrolyte bath subjected to electrical current.
– Rack Electropolishing: Ideal for complex stampings requiring high precision.
– Bulk Electropolishing: A more cost-effective method used for simpler parts such as fasteners.
Benefits of Electropolishing:
– Improves appearance and surface smoothness
– Prevents corrosion
– Deburrs minor imperfections
– Enhances fatigue life
– Provides ultra-clean surfaces

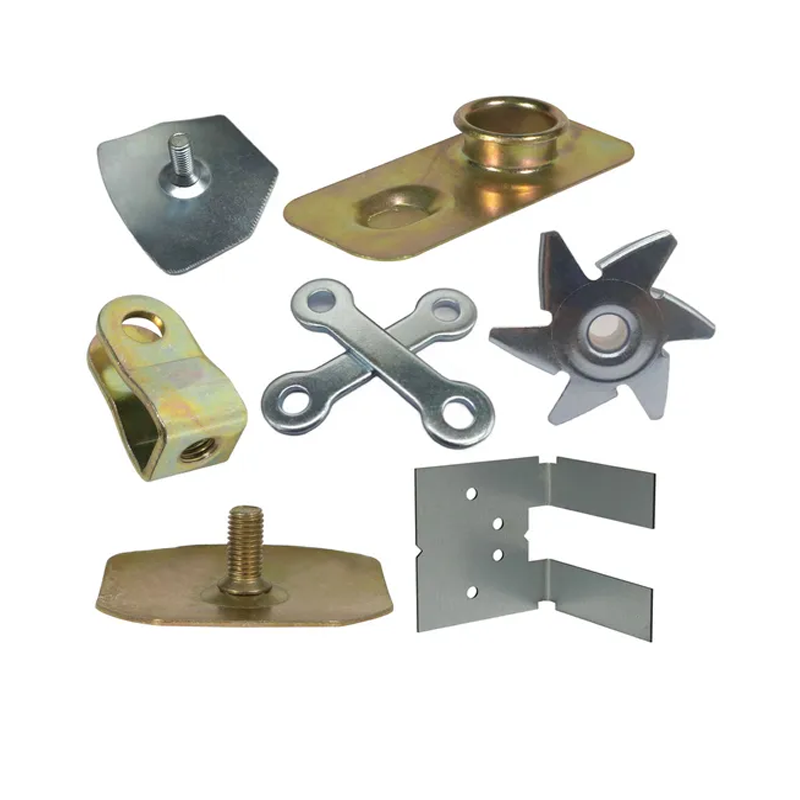

Deburring
Deburring is a critical post-stamping process aimed at removing burrs, or the small protrusions of metal left on a part after stamping. Effective deburring ensures optimal fit and function of the component.
Common deburring techniques include:
– Bulk Deburring: Utilizing barrel and vibratory finishing methods to tumble or vibrate parts in abrasive media, effectively removing sharp edges and contaminants.
– Electropolishing: Also serves as a high-precision deburring option, creating a mirror-like finish.

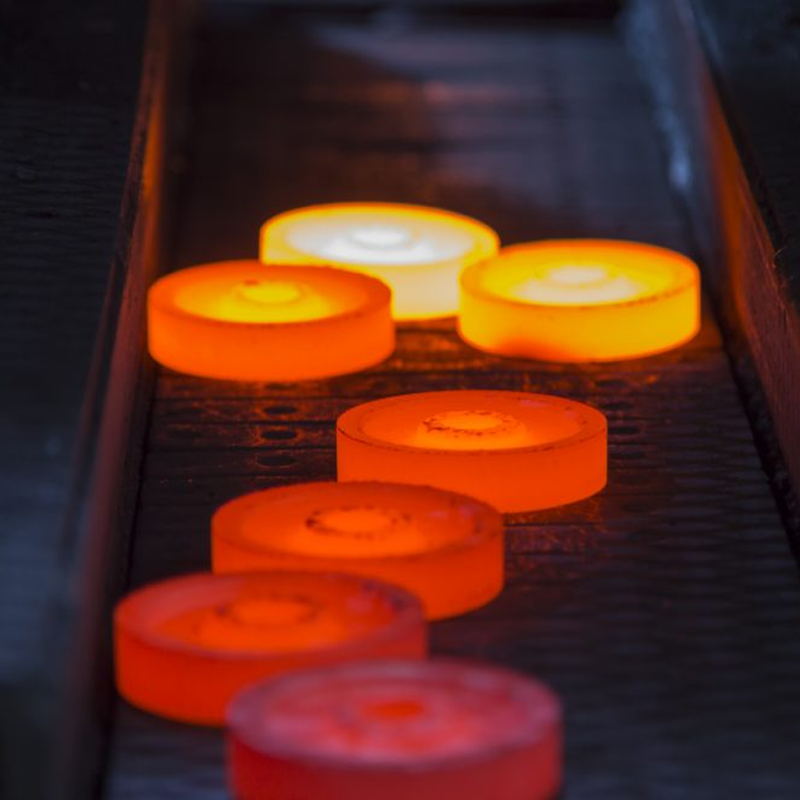

Heat Treating
Heat treating involves heating and cooling metals to alter their microstructure, enhancing their physical and mechanical properties. This process enables the use of softer steel alloys while achieving the necessary strength for intricate designs.
Types of Heat Treating Processes:
– Quenching: This hardening process involves heating the metal and rapidly cooling it using various media like oil or salt to increase strength and wear resistance.
– Annealing: A softening process that makes the metal more malleable, reducing internal stress and brittleness.

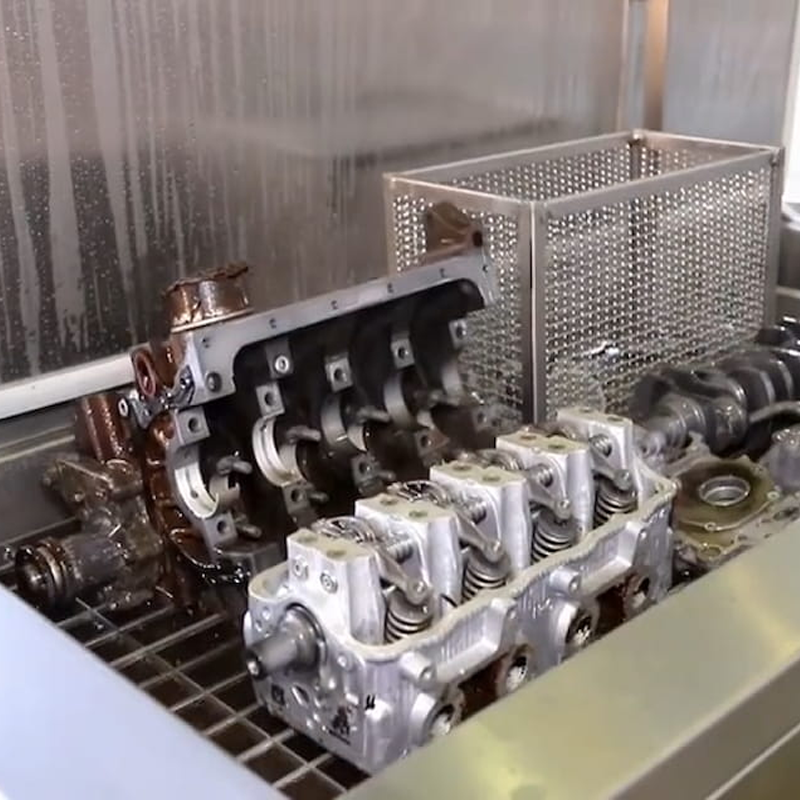

Cleaning
Post-manufacturing, metal stampings often carry residues such as lubricants, metal shavings, and dust that can hinder performance. A range of cleaning methods can effectively remove these contaminants, enhancing both appearance and functionality.
Typical cleaning methods include:
– Degreasing: Using aqueous or vapor techniques to eliminate oils.
– Passivation: Utilizing citric or nitric acid to prevent rust.
– In-line Spray or Immersion Cleaning: Effective for thorough cleaning.
– Electropolishing and Sterilization: Ensures ultra-clean surfaces.
Evaluating Metal Finishing Options During DFM
Incorporating finishing options early in the Design for Manufacturability (DFM) process is essential for avoiding unexpected costs and delays. Collaborating with a precision metal stamping provider that leverages both in-house capabilities and trusted suppliers for specialized finishing operations can lead to optimal results.
Engaging with experienced metal stamping engineers familiar with various finishing techniques can provide valuable insights, helping to determine the most appropriate methods for your specific product requirements. By integrating finishing considerations into the design phase, manufacturers can ensure that their stamped components not only meet performance expectations but also enhance overall quality and durability.
In conclusion, selecting the right finishing options for precision metal stampings is integral to achieving desired performance characteristics. From powder coating and plating to electropolishing and heat treating, understanding the benefits and applications of each method allows manufacturers to produce high-quality components tailored to their specific needs.
