Metal stamping clips are a category of highly specialized fasteners designed to provide reliable connections and support in a wide array of industrial applications. Manufactured with precision, these components are essential in industries ranging from automotive to aerospace and electronics. The versatility and dependability of metal stamping clips make them indispensable in assemblies where secure fastening and durability are paramount.
In this post, we will explore the fundamental aspects of metal stamping clips, including their manufacturing process, benefits, applications, and key considerations for selecting the right clip for your needs. Whether you’re in the market for these components or seeking to understand their role in modern manufacturing, this guide offers a comprehensive overview of what you need to know.
What Are Metal Stamping Clips?

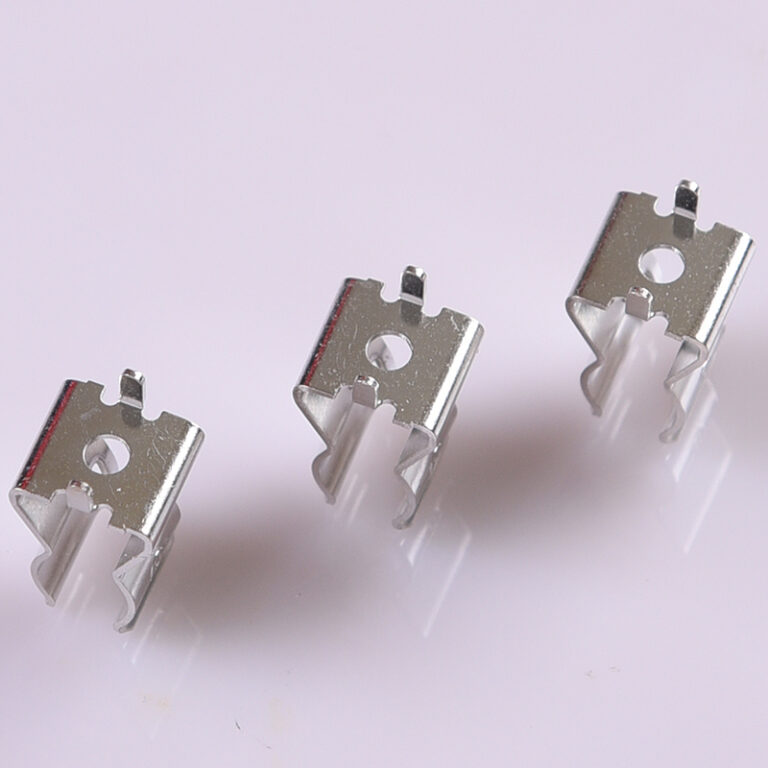

Metal stamping clips are precision-engineered fasteners that hold components together securely, manage cables, or provide structural support within various assemblies. These clips are produced through the metal stamping process, which involves shaping metal sheets into specific designs using dies and presses. The precision of this method allows for the creation of parts with tight tolerances, ensuring that each clip performs consistently and reliably.
Metal stamping clips are not just simple fasteners; they are meticulously engineered to meet strict specifications for strength, flexibility, and longevity. The metal stamping process offers significant benefits in terms of high-volume production, uniformity, and cost-efficiency, making these clips a go-to solution in manufacturing.
The Metal Stamping Process
The manufacturing process of metal stamping clips begins with a coil of metal, typically steel, aluminum, or brass, fed into a stamping press. The press uses specially designed dies and high pressure to form the metal into the desired shape. This process can involve a combination of punching, bending, embossing, and pressing actions to produce the final clip design.
One of the key advantages of the stamping process is its customizability. Stamping can create clips of varying shapes, sizes, and complexities, allowing manufacturers to produce parts suited to the exact requirements of different industries. The high-speed production capabilities of metal stamping make it ideal for large-scale manufacturing, where consistency and low per-unit costs are critical.
Key Benefits of Metal Stamping Clips
-
Precision and Consistency
Metal stamping clips are produced with tight tolerances, ensuring that each clip is identical in size, shape, and performance. This consistency is especially important in industries where even minor deviations in clip dimensions can result in component failure. Whether used in automotive safety systems or aerospace applications, precision-stamped clips provide the reliability needed to meet stringent performance standards.
-
Cost-Effectiveness
Metal stamping is a cost-effective manufacturing process, particularly for large production runs. While initial setup costs for dies and presses may be high, the per-unit cost for each clip decreases significantly with increased volume. This makes metal stamping clips an economical option for industries requiring high quantities of reliable fasteners at a competitive price point.
-
Versatility
Metal stamping clips are highly versatile, with applications across multiple industries. These clips can be customized in terms of shape, material, and strength, making them suitable for everything from simple fastenings in household appliances to complex structural components in aerospace assemblies. This flexibility allows engineers to use stamped clips in a wide variety of scenarios, each requiring unique design specifications.
Types of Metal Stamping Clips
There are several types of metal stamping clips, each designed for specific applications. Below are some of the most commonly used types:
-
Flat Metal Clips
These clips are simple yet effective, commonly used in automotive interiors and household appliances. Their flat design provides a low-profile connection between two surfaces, offering strong retention without compromising space.
-
U-Shaped Clips
U-shaped clips are versatile fasteners commonly used to secure round components or cables. They are frequently found in automotive wiring systems and plumbing applications, where their easy installation and secure grip are essential.
-
E-Clips
These clips are used to secure parts onto shafts or pins. Often found in automotive and machinery assemblies, E-clips snap into grooves, creating a secure fit that prevents lateral movement.
-
S-Clips
Designed for quick assembly and secure fastening, S-clips are used to connect overlapping components. These clips are ideal for applications like mounting panels or signage where rapid assembly is required.
-
V-Clips
V-clips are useful for temporary or adjustable assemblies. Their unique design allows them to fasten components without permanent alterations, making them perfect for adjustable fixtures like shelving units and display stands.
-
Spring Clips
Spring clips rely on tension to maintain pressure and hold parts securely in place. They are commonly used in automotive applications and electronics to hold components such as trim panels or batteries.
-
Circlips (Snap Rings)
Circlips, or snap rings, are used in mechanical assemblies to secure parts within grooves. These clips permit rotational movement while preventing lateral displacement, making them widely used in automotive and machinery sectors.
-
Wire Clips
These clips are designed specifically to hold wires or cables in place. They come in various shapes and sizes to accommodate different installation requirements.
-
Clip Nuts
A combination of a nut and a spring clip, clip nuts provide a threaded fastening point on thin materials, such as sheet metal or composites, making them ideal for use where access to both sides of the panel is limited.
-
Mounting Clips
Used to secure items to walls or panels, mounting clips are commonly employed in construction, wiring installations, and other structural applications. Their design varies depending on the weight and material being mounted.
Industries That Rely on Metal Stamping Clips
Metal stamping clips play an essential role in numerous industries. Below are some key sectors that rely on these components:
– Automotive:
Metal stamping clips are crucial for a variety of automotive applications, including securing wiring, fasteners, upholstery, and mounting components within the powertrain. Their durability and strength are vital for ensuring the safety and functionality of vehicles.
– Aerospace:
In the aerospace industry, precision and reliability are paramount. Metal stamping clips are used to assemble airframes, engines, and interior fixtures, where they must withstand extreme conditions and vibrations.
– Electronics:
Metal stamping clips are integral to securing circuit boards, connectors, and other electronic components. Their precision manufacturing ensures a perfect fit, contributing to the stability and functionality of sensitive electronic devices.
– Medical:
In the medical field, metal stamping clips are used in devices such as surgical instruments, implants, and diagnostic equipment. These clips must meet rigorous standards for sterilization and biocompatibility to ensure their safe and reliable performance in critical healthcare applications.
– Military and Defense:
Military applications require parts that can perform in harsh environments. Metal stamping clips are used in vehicles, weapons, and electronics systems where reliability and durability under extreme conditions are essential.
– Construction:
In the construction industry, metal stamping clips are used for framing, plumbing, and electrical systems. Their robust design ensures long-term stability and safety for structural elements.
Choosing the Right Metal Stamping Clip
When selecting a metal stamping clip, several factors must be considered:
-
Material Selection:
The material choice affects the clip’s strength, corrosion resistance, and suitability for a specific application. Steel, aluminum, and brass are commonly used materials, each with its own benefits for different environments.
-
Design Considerations:
The clip design should align with the mechanical requirements of the application. Factors such as thickness, width, and shape need to be evaluated to ensure the clip fits within the available space and supports the necessary load.
-
Quality Assurance:
Ensure that the clips meet industry standards for quality and performance. Certifications like ISO or IATF 16949 are often required for automotive applications, and testing for tension, compression, and environmental durability should be a part of the selection process.
Conclusion
Metal stamping clips are essential components that offer reliability, precision, and versatility across a range of industries. Their ability to be customized to meet specific requirements makes them invaluable in a variety of applications. By understanding the types, benefits, and considerations for selecting metal stamping clips, you can ensure that your manufacturing processes are optimized for performance and cost-efficiency. If you need further assistance or expert advice on selecting the right clips for your application, don’t hesitate to contact us. We are here to help you navigate the complexities of metal-stamped components and ensure the success of your projects.
